NOVA

“A dual-channel amp that has a vintage soul, yet with versatility to suit the most demanding players.” – Dr. Z

Specifications

Power Output32 watts
Output Tubes2 – 5881
Preamp Tubes3 – 12AX7
Rectifier1 – 5U4GB
ControlsVolume, Overdrive, Bass, Treble, Presence, Master Volume, Channel Footswitch
Other8 Ohm External and Internal speaker outs, Buffered FX Loop, Channel Footswitch (footswitch included)
ConfigurationsHead
1×12 LT Combo
Dimensions and WeightHead: 19” W, 9 3/4” H, 9 1/2” D; 28 lbs.
1×12 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 36 lbs.
Owner’s ManualDownload

General Information

The Dr. Z NOVA moves in a bit of a new direction for Dr. Z Amps. It is a twin-channel switching amp with a wonderfully rich clean channel, reminiscent of a low-powered tweed twin, featuring full bodied mid-range with great depth and harmonic content. Jumping over to the overdrive channel blends smooth, thick overdrive into the clean signal for a perfect blend of string articulation and fat distortion. By blending both signals you maintain all the clarity of your clean channel while adding endless, singing sustain for lead work and robust overdrive that envelops chords with no loss of definition.

The NOVA has a 5881 based power amp wired in triode configuration, and utilizes an original low-powered tweed twin output transformer built by the Triad company: the same company that supplied transformers for the original tweed series over 50 years ago. As the heart of the amp, this authentically reproduced output transformer gives the NOVA it’s vintage voice, while the overdrive channel adds a twist of modern gain at the step of a footswitch.

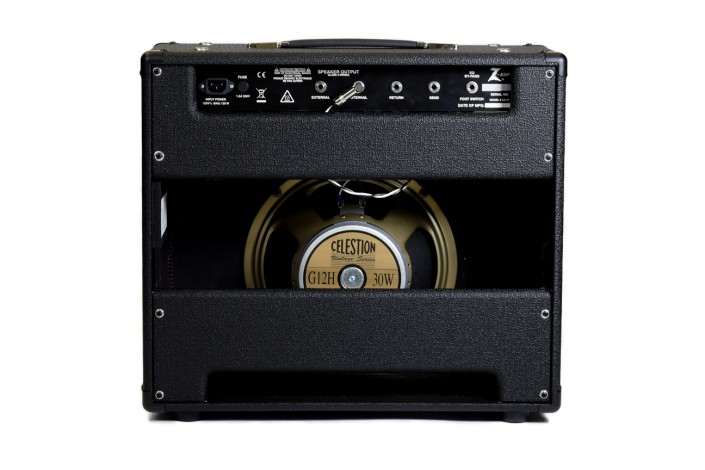

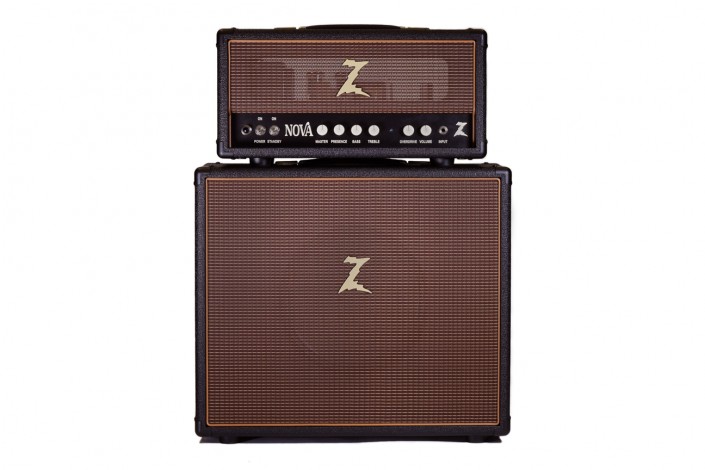

We included a specifically tuned post-phase inverter master volume to the NOVA allowing it to supply raucous roar or pristine cleans at whisper volumes. The final feature, a buffered effects loop, adds modern practicality and versatility to the revered, vintage tones ready to burst out of this amp. The NOVA is equally at home in a head cabinet or our ultra-lite 1×12 combo cab, fitted with a Celestion G12 H30 speaker.
