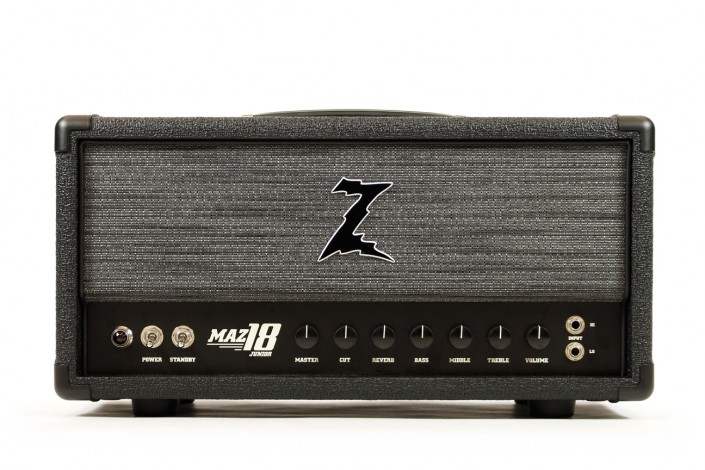

MAZ 18 Mk.II

“A stunningly versatile amplifier that has become my most popular design to date.” – Dr. Z

Specifications

Power Output18 Watts
Output Tubes2 – 6N14N (NOS, mil-spec EL84)
Preamp Tubes4 – 12AX7, 1 – 12AT7
Rectifier1 – 5AR4
ControlsVolume, Treble, Mid, Bass, Cut, Master Volume, Reverb
Other4, 8, 16 Ohm
Effects loop
Variable Boost Footswitch

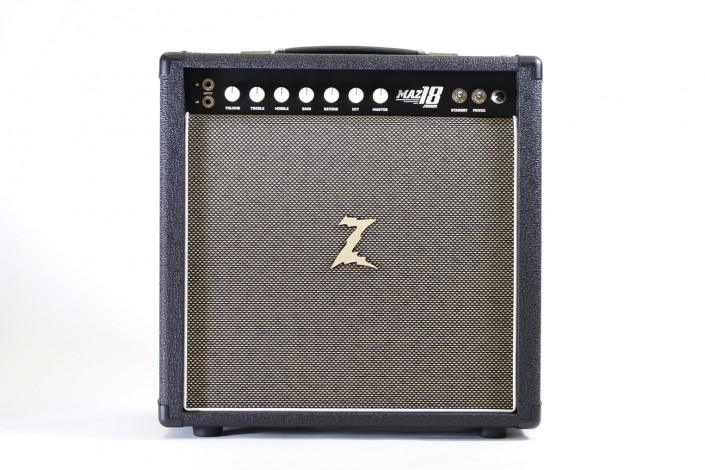

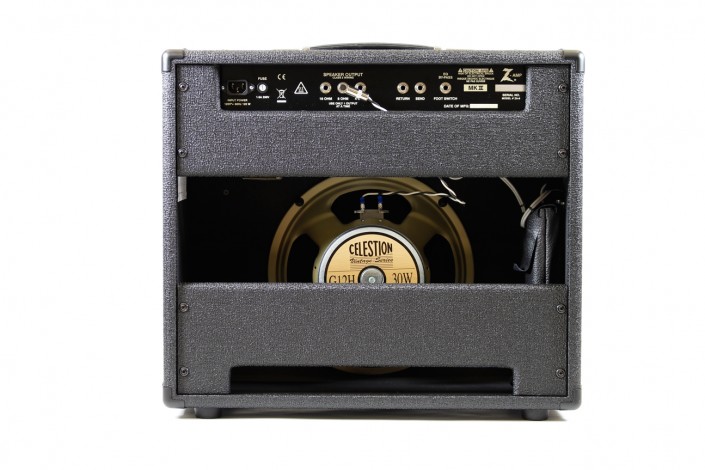

ConfigurationsHead, 1×12 Studio Combo, 1×12 Ultra Lite Combo, 2×10 Ultra Lite Combo
Dimensions & WeightHead: 19” W, 9 3/4” H, 9 1/2” D; 32 lbs.
1×12 Studio Combo: 19 ¼” W, 19 ½” H, 10 ½ ” D; 38 lbs.
1×12 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 40 lbs.
2×10 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 45 lbs.
Owner’s ManualDownload

General Information

Originally designed as a “grab-and-go” studio and small club amp, the MAZ 18 has made its way to some of the largest stages in the country. Don’t confuse “18 Watts” with “weak and flabby”. The MAZ 18 will amaze you with its definition and headroom, all the way down to the low E…plenty of power for a single 12″ speaker or 2×10″ speakers. You’ll use this amp in small clubs and never think about needing to mic it. Got a larger venue? Mic the MAZ 18 and play away, because big amp tone and soul is all there. This is also a great amp for jazz guitarists, whether you’re looking to replace a small blackface amp or looking for an amp with enough complexity for fusion.

The MAZ 18 is an amp that every Strat or Tele player will love, but it’s not only for single coil players as humbuckers are right at home with the MAZ 18 too. You get great hard rock drive at any volume with the Hi input or use the Lo input for cleaner humbucker sounds. The “Cut” knob may be the most useful and versatile tone shaping tool on any guitar amp. The “Cut” knob is best used after the EQ is all set; turn it up for extra edge, turn it down for a more vintage sound. Throughout its range, it produces a large variety of sounds to satisfy players using all guitars for most every style of music.

The master volume is post-phase inverter which allows you to achieve whisper quiet volumes with no loss of tone or gain, great for home practice sessions. The variable boost footswitch gives a great lead boost which effectively makes the MAZ 18 a 2 channel amp. The MAZ 18 is powered by a pair of NOS Russian Mil-Spec 6n14n power tubes rated to last twice as long as other EL84 variants.

MAZ 18 Mk.II

The MAZ 18 has become Dr. Z’s most popular model over the last 20 years of it’s production. We have listened to player feedback, and over the course of the last 5 years developed improvements in every facet of the circuit.

Included in the Maz 18 Mk.II:

-New, versatile voicing providing pristine American cleans, chiming British overdrive, and juicy hard rock crunch in one package.

-Specifically tuned post-phase inverter master volume allows you dial in your tone at any volume, down to whisper quiet.

-Ultra-light cabinet made from imported Italian poplar (2×12 not included).

-Improved spring reverb for subtle richness or splashy surf tones.

-Buffered effects loop for seamless, transparent integration with your pedalboard.

-New Old Stock Russian mil-spec 6n14n (EL84) power tubes rated to last twice as long as new production EL84s.

-Variable boost footswitch is included, providing anywhere from a small bump in volume to all-out, singing distortion.

Testimonials

“I have the new Mk II Maz 18 and I am tickled to death every time I turn it on. I’m so impressed with this amp. I have managed to get the perfect “Allman brother” live tone except with my own sound infused if that makes sense. I’ve gone from using 3 drives, massive delays, and massive reverbs with my 73’ Bassman to nothing but my guitar, Timmy drive, and Maz 18 Mk II. No need for all of those non essential pedals when you have amazing tone. I want to thank Dr. Z for giving me this amazing experience and freeing my mind from tap dancing pedals to just playing and my style of playing. Definitely making me a better player!”

-Aaron Brooks

Speaker Options

Celestion G12 H30

Celestion G12 H30

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 30W Ceramic 100dB

Celestion G12H

Celestion Creamback M65

Celestion Creamback

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 65W Ceramic 97dB

Celestion Creamback

Celestion Blue

Celestion Blue (additional upcharge)

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 15W Alnico 100dB

Celestion Blue

Celestion Vintage 30

Celestion V30

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 60W Ceramic 100dB

Celestion Vintage 30

Eminence Z12

Eminence Z12

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Ceramic 99dB

Dr. Z-12

Celestion Greenback

Celestion Greenback

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm 25W Ceramic 98dB

Celestion Greenback

Z Best 2x12

Dr. Z Z Best 2×12 Cabinet (Celestion V30/H30)

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
2×12″ 8ohm/16ohm 60W Ceramic 100dB

Celestion Gold

Celestion Gold (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Alnico 100dB

Celestion Gold

Celestion Cream

Celestion Cream (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm 90W Alnico 100dB

Celestion-Alnico-Cream

Celestion G12-65

Celestion G12-65 (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm 65W Ceramic 97dB

Eminence Z 10"

Eminence Z 10″ (2×10 only)

Size Impedance Power Magnet Sensitivity
10″ 16ohm 70W Ceramic 96.7dB

Disclaimer: while the information contained on this page is correct at the time of publication, due to our policy of constant improvement and development, Dr. Z Amplification reserves the right to alter specifications without prior notice.
