MAZ 18 NR Mk.II

“My personal favorite. The 18 NR is one of the best values in a hand-wired amp. Great clean and gain at an affordable price…” – Dr. Z

Specifications

Power Output18 Watts
Output Tubes2 – 6N14N (NOS, mil-spec EL84)
Preamp Tubes3 – 12AX7
Rectifier1 – 5AR4
ControlsVolume, Treble, Mid, Bass, Cut, Master Volume
Other4, 8, 16 Ohm
Effects loop
EQ Bypass (New variable boost footswitch included)
ConfigurationsHead, 1×12 Studio Combo, 1×12 Ultra Lite Combo, 2×10 Ultra Lite Combo
Dimensions & WeightHead: 19” W, 9 3/4” H, 9 1/2” D; 32 lbs.
1×12 Studio Combo: 19 ¼” W, 19 ½” H, 10 ½ ” D; 38 lbs.
1×12 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 40 lbs.
2×10 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 45 lbs.
Owners ManualDownload

General Information

So what do you get when you take the reverb out of the faithful MAZ 18? You get more singing gain and less compression making it the perfect club amp for all you rock and rollers and roots music players. The MAZ 18 NR has that certain old school attitude that comes alive under your fingers. You can dial in clean chimey tones or raw vintage drive. The NR delivers rich singing tones from single coils and sweet British crunch from humbuckers. Coupled with a Z Best cab, the MAZ 18 NR can hang on any large club stage. The 1×12 or 2×10 combos are excellent grab and go gig/studio amps.

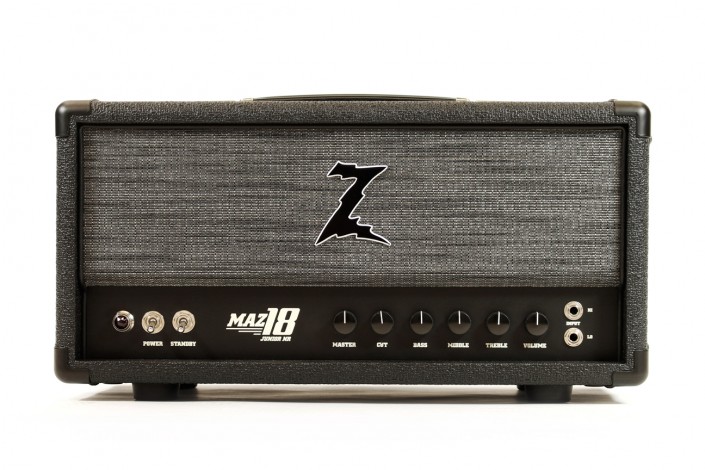

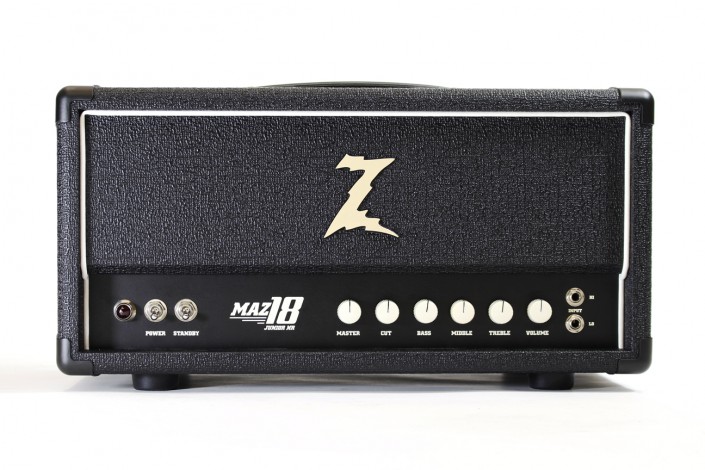

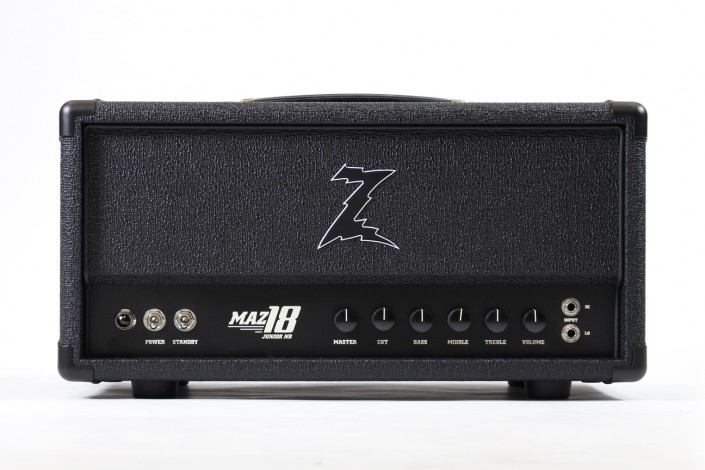

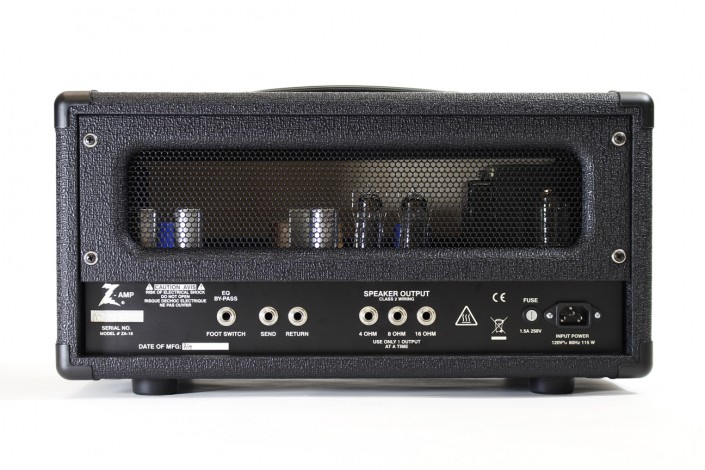

The front panel features Volume, Treble, Middle, Bass, Master, and the ever versatile Cut control. Think of the Cut as a tone knob for the output tubes. The back panel features a 4,8, and 16 ohm speaker out. An effects loop and our EQ bypass function is also standard.  The footswitchable EQ bypass gives a great lead boost which effectively makes the 18 NR a 2 channel amp. The 18 NR is powered by a pair of NOS Russian Mil-Spec 6n14n power tubes, has three 12AX7s in the front end, and a 5AR4 rectifier. With 18 watts at your finger tips you can get that perfect blend of front end grind and output tube sustain.

Magazine Reviews

gp_editors_pick

Guitar Buyer magazine provided us with review of the Maz18 NR.

MAZ 18 NR Mk.II

The MAZ series of amplifiers have become Dr. Z’s most popular models over the last 20 years of their production. We have listened to player feedback, and over the course of the last 5 years developed improvements in every facet of the circuit. Included in the Maz 18 NR Mk.II:

-New, versatile voicing providing pristine American cleans, chiming British overdrive, and juicy hard rock crunch in one package.

-Specifically tuned post-phase inverter master volume allows you dial in your tone at any volume, down to whisper quiet.

-Ultra-light cabinet made from imported Italian poplar (2×12 not included).

-Buffered effects loop for seamless, transparent integration with your pedalboard.

-New Old Stock Russian mil-spec 6n14n (EL84) power tubes rated to last twice as long as new production EL84s.

-Variable boost footswitch is included, providing anywhere from a small bump in volume to all-out, singing distortion.

Speaker Options

Celestion G12 H30

Celestion G12 H30

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 30W Ceramic 100dB

Celestion G12H

Celestion Creamback M65

Celestion Creamback

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 65W Ceramic 97dB

Celestion Creamback

Celestion Blue

Celestion Blue (additional upcharge)

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 15W Alnico 100dB

Celestion Blue

Celestion Vintage 30

Celestion V30

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 60W Ceramic 100dB

Celestion Vintage 30

Eminence Z12

Eminence Z12

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Ceramic 99dB

Dr. Z-12

Celestion Greenback

Celestion Greenback

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
12″ 8ohm 25W Ceramic 98dB

Celestion Greenback

Z-Best 2x12

Dr. Z Z-Best 2×12 Cabinet (Celestion V30/H30)

MAZ 18 with a telecaster recorded with SE Ribbon mic.

Size Impedance Power Magnet Sensitivity
2×12″ 8ohm/16ohm 60W Ceramic 100dB

Celestion Gold

Celestion Gold (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Alnico 100dB

Celestion Gold

Celestion Cream

Celestion Cream (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm 90W Alnico 100dB

Celestion-Alnico-Cream

Celestion G12-65

Celestion G12-65 (additional upcharge)

Size Impedance Power Magnet Sensitivity
12″ 8ohm 65W Ceramic 97dB

Eminence Z 10"

Eminence Z 10″ (2×10 only)

Size Impedance Power Magnet Sensitivity
10″ 16ohm 70W Ceramic 96.7dB

Disclaimer: while the information contained on this page is correct at the time of publication, due to our policy of constant improvement and development, Dr. Z Amplification reserves the right to alter specifications without prior notice.
