2×12 open-back cab

Specifications

Dimensions22 ¼ “ H, 27 ½ “ W, 10 ¼” D.
Weight54 lbs.

General Information

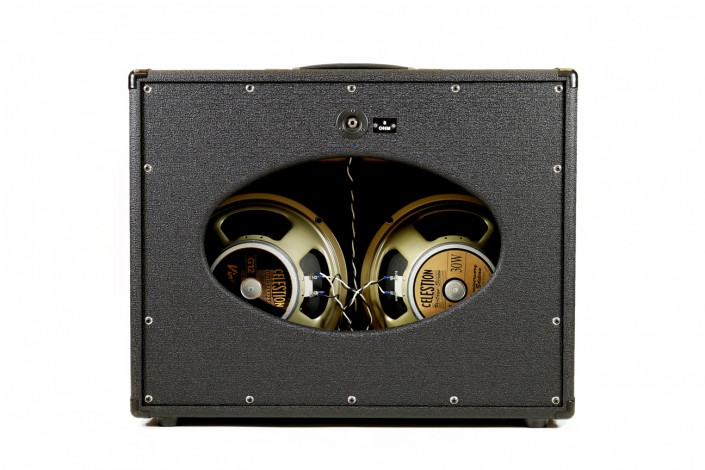

The Dr. Z open-back 2×12 delivers excellent performance for any application. The 2×12 cab uses lens technology and a oval-ported open back  for improved tuning. These are also a perfect match for a Dr. Z 2×12 combo to create your own unique stack. Our suggested speaker combination is the Celestion Vintage 30 and H30, though other speaker options are available upon request.

Speaker Options

Celestion Vintage 30

Celestion V30

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 60W Ceramic 100dB

Celestion Vintage 30

Eminence Z12

Eminence Z12

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Ceramic 99dB

Dr. Z-12

Celestion G12 H30

Celestion G12 H30

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 30W Ceramic 100dB

Celestion G12H

Celestion Gold

Celestion Gold

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 50W Alnico 100dB

Celestion Gold

Celestion Blue

Celestion Blue

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 15W Alnico 100dB

Celestion Blue

Celestion Cream

Celestion Cream

Size Impedance Power Magnet Sensitivity
12″ 8ohm 90W Alnico 100dB

Celestion-Alnico-Cream

Celestion Creamback M65

Celestion Creamback

Size Impedance Power Magnet Sensitivity
12″ 8ohm/16ohm 65W Ceramic 97dB

Celestion Creamback

Celestion Greenback

Celestion Greenback

Size Impedance Power Magnet Sensitivity
12″ 8ohm 25W Ceramic 98dB

Celestion Greenback

Celestion G12-65

Celestion G12-65

Size Impedance Power Magnet Sensitivity
12″ 8ohm 65W Ceramic 97dB

Disclaimer: while the information contained on this page is correct at the time of publication, due to our policy of constant improvement and development, Dr. Z Amplification reserves the right to alter specifications without prior notice.
