Dr. Z Amplification

*Note: Production of this amp ended May 2022.

EZG-50

“My spin on the blackface reverb head that never was.” – Dr. Z

Specifications

Power Output	50 Watts
Output Tubes	2 – 6L6GC STR
Preamp Tubes	V1 12AX7, V2 NOS 12AT7/6201, V3 12AX7, V4 NOS 12AT7/6201
Rectifier	1 – 5AR4
Controls	Pre & Post Volume, Treble, Mid, Bass, Dwell, Mix

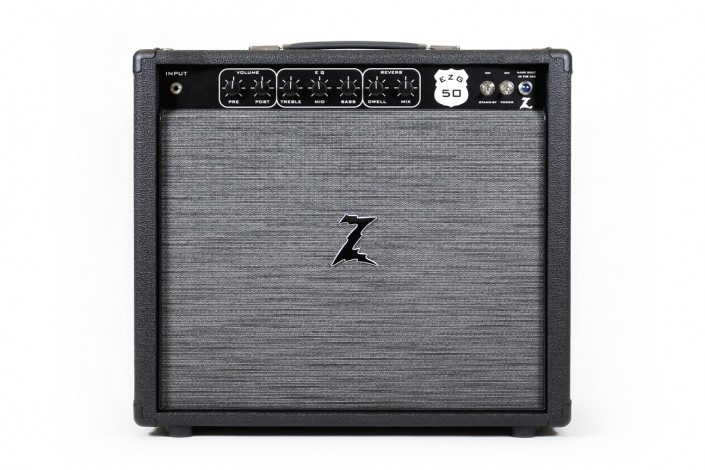

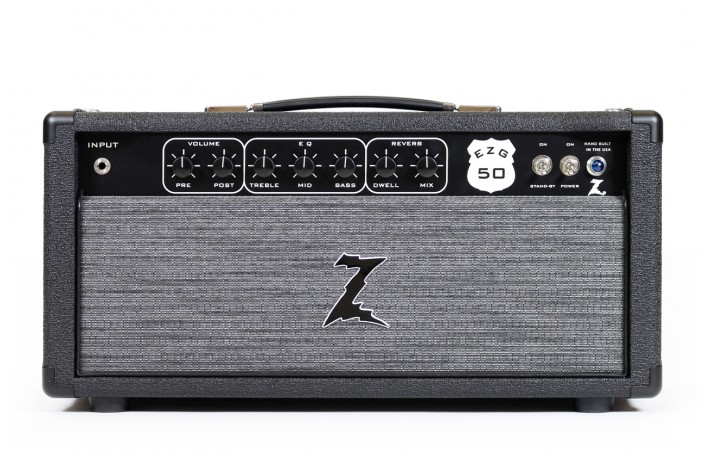

Configurations	Head, 1×12, 2×10 Combos
Dimensions & Weight	Head: 22 3/4″ W, 10 1/8″ H, 10″ D; 44 lbs. 1×12 Combo: 22 ¾” W, 20” H, 10 ½” D; 65 lbs. 2×10 Combo: 22 ¾” W, 20” H, 10 ½” D; 68 lbs.
Owners Manual	Download

General Information

The wait is finally over… the EZG-50 is here! The EZG-50 has the definitive 6L6 clean sound. Whether you are lusting after the classic “El Mocambo” tone, looking to surf the big waves, or want twang straight out of Bakersfield, the EZG-50 will satisfy the most discriminating blackface tone seeker. This is a sound that has been missing in the Z line up until now.

Much time and care was taken in the development of the EZG-50. The seed of the amp came from a new 6L6 output transformer designed for Z Amps by Ken Fischer of Trainwreck Amps. The output transformer has a very unique impedance not used by other American amp makers making it one of the key factors to the EZG-50s sound. NOS Allen Bradley carbon comp resistors are used in all critical tone positions of the EZG-50 circuit. These classic resistors add a warmth and depth to the tone that only they can give.

The EZG-50 features a 2-knob, all-tube spring reverb. The Dwell and Mix controls give you full authority over your reverb needs. Anything from a subtle tail on the note to a full-on surf assault is at your command. You also get a full EQ and a Pre and Post master volume, allowing you to achieve tube saturation and overdrive with control over the volume level. Around the back panel you’ll find 16, 8, and 4 ohm speaker outs to accommodate any cabinet.

With 50 watts of clean power, 2-knob reverb, and a tube rectifier, the EZG-50 is the blackface head that never was…a’la Dr Z!
