Stang Ray

“The King of British Clean – The Stang Ray.” – Dr. Z

Specifications

Power Output15/30 Watts
Output Tubes4 – EL84
Preamp TubesV1 – EF86 (NOS), V2 – 12AX7
Rectifier 5AR4
ControlsVolume, Tone, Cut, Half Power Switch

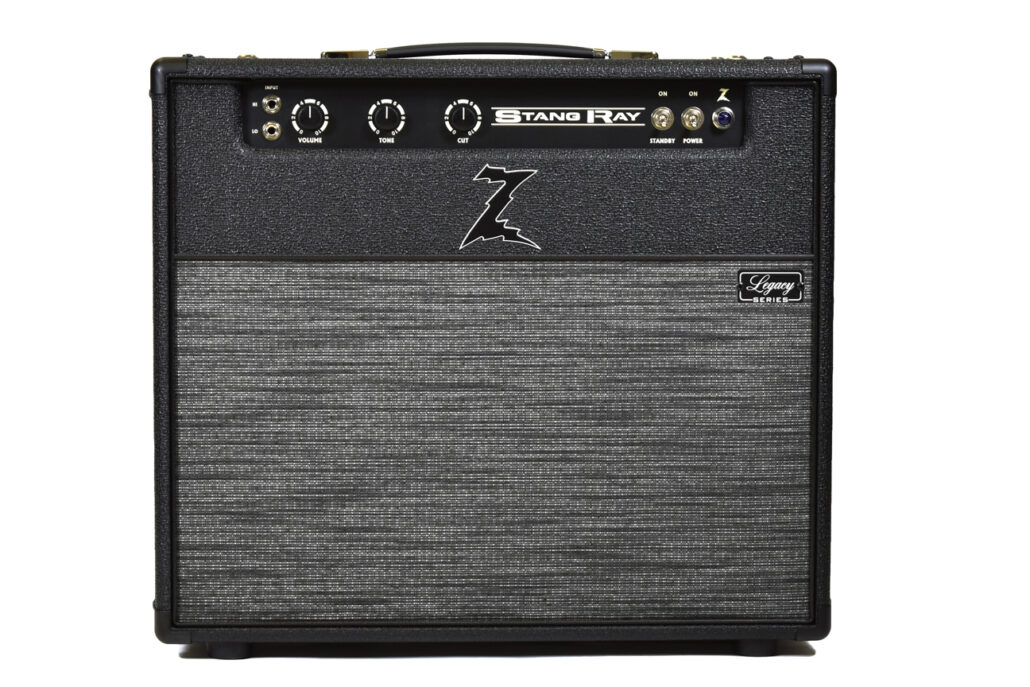

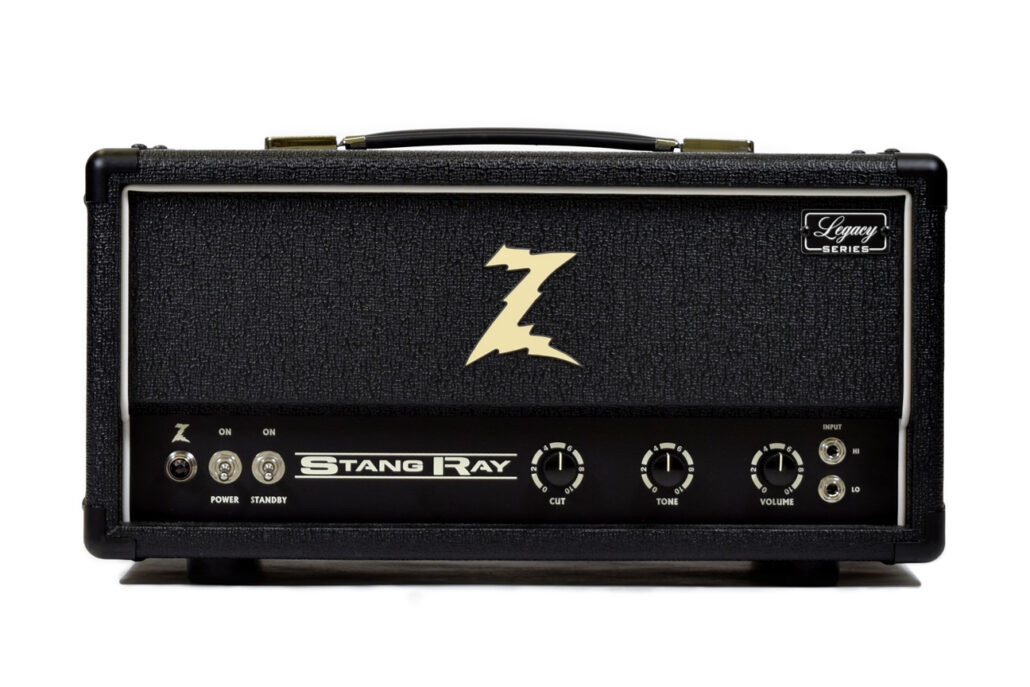

ConfigurationsHead, 1×12 Combo with Celestion Alnico Gold
Dimensions & WeightHead: 19″ W, 9 3/4″ H, 9 1/2″ D; 35 lbs.
1×12 Combo: 23″ W, 20 1/8″ H, 10″ D; 50 lbs.
Owners ManualDownload

General Information

The Stang Ray is the result of his second collaboration with superstar country guitarist Brad Paisley. After the success of their first partnership, the Prescription Extra Strength, Dr.Z and Brad Paisley wanted to develop an amplifier that offered an additional pallet of tones to work alongside the Prescription Extra Strength.

Using the classic setup of a quartet of EL84’s biased close to true Class A at 30 watts, the new Stang Ray tips its hat to classic British tones, but like all Dr.Z amps, has its own unique voice. The preamp uses an EF-86, and it has a 12AX7 phase inverter. Tone shaping is accomplished with Volume, Tone, and Cut controls, giving you the ability to dial up a warm tone, but with sweet 3k range brilliance for beautiful upper treble and nice low-midrange control. The output transformer was designed by Ken Fischer (Trainwreck), who also worked with Dr.Z on the Airbrake. The Stang Ray also includes a convenient half power switch to allow you to saturate the output section for a different feel.

The front panel keeps it simple with controls for volume, tone, and cut. Around back are 4, 8 and 16 ohm speaker outs.

Sounds

Strat

Strat

Recorded with a SE VR-1 Ribbon through an Alnico Gold.

Humbuckers

Humbuckers

Recorded with a PRS DGT with a SE VR-1 Ribbon through an Alnico Gold.

Tele

Tele

Recorded with a SE VR-1 Ribbon through an Alnico Gold.

STANG RAY LEGACY EDITION starting at $2399!

  • LEGACY ORDERS ARE AVAILABLE TO THE CONTIGUOUS UNITED STATES ONLY. SHIPPING PRICE IS NOT INCLUDED.
  • LEGACY AMPLIFIERS ARE BACKED BY A LIFETIME WARRANTY TO THE ORIGINAL OWNER (NON-TRANSFERABLE, 90 DAY WARRANTY OF TUBES).
  • ALL LEGACY ORDERS REQUIRE A $500 DEPOSIT TO INITIATE THE BUILD. AN ESTIMATED SHIPPING QUOTE WILL BE INCLUDED WITH THE DEPOSIT INVOICE. THE INITIAL DEPOSIT CAN BE MADE BY PAYPAL, CHECK, OR MONEY ORDER.
  • ALL PAYMENTS AND DEPOSITS ARE NON-REFUNDABLE, NON-TRANSFERABLE, AND NON-NEGOTIABLE.
  • LEAD TIME IS 6-8 WEEKS (DEPENDING ON WORK LOAD AND PARTS AVAILABILITY).
  • THE REMAINDER OF THE PAYMENT IS DUE UPON COMPLETION AND A FINAL SHIPPING CHARGE WILL BE QUOTED BEFORE SHIPMENT OF THE AMPLIFIER.

Disclaimer: while the information contained on this page is correct at the time of publication, due to our policy of constant improvement and development, Dr. Z Amplification reserves the right to alter specifications without prior notice.
