‘Backline’ 4×10 Cab

Specifications

Dimensions24” H, 24” W, 10” D.
Weight53 lbs.

General Information

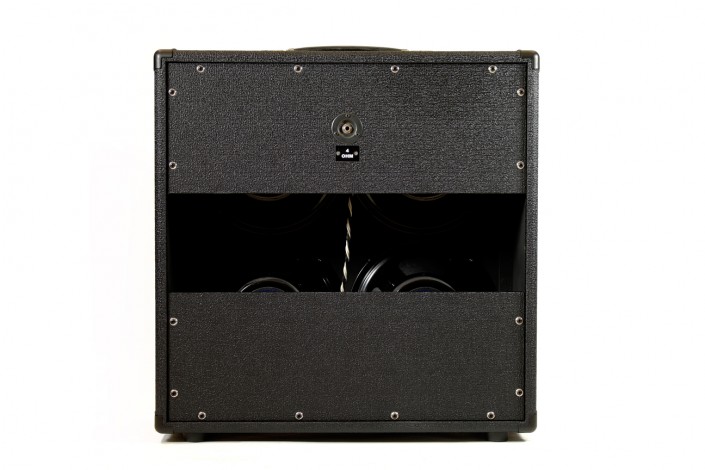

Our ‘Backline’ 4×10 convertible cab utilizes the classic floating baffle design found on the great 4×10 amps of the 1950’s. The entire front of the cabinet comes alive to deliver an outstanding wall of sound. The ‘Backline’ 4×10 is like getting 2 speaker cabs for the price of one. We offer a removable rear panel which enables closed-back or open-back operation. This cab comes loaded with our proprietary Z 10” speakers (other speakers available on request, see your dealer). Big sound awaits and this cab can handle any head you put on it.

Speaker Options

Eminence Z10 (special design)

Eminence Z10

Size Impedance Power Magnet Sensitivity
10″ 16ohm 70W Ceramic 96.7dB

Z10

Eminence Dr. Z Legend 10"

Eminence Dr. Z Legend 10″

Size Impedance Power Magnet Sensitivity
10″ 8ohm 20W Alnico 98dB

Legend_10216K

Disclaimer: while the information contained on this page is correct at the time of publication, due to our policy of constant improvement and development, Dr. Z Amplification reserves the right to alter specifications without prior notice.
